Fiber Patch Cord

large.img.alt

Подробная информация о продукте:

Place of Origin: China
Фирменное наименование: Global Tech
Сертификация: ISO9001
Model Number: PC

Оплата и доставка Условия:

Packaging Details: Standard Carton
Delivery Time: 7 days after payment clear
Контакт
Подробное описание продукта
Minimum Oeder Quantity: 1 Pair Payment Terms: EXW
Supply Aility: 10000 Unit
Высокий свет:

Fast Connector

,

Fusion Splicer

,

Manual Splicer

rom our veritified partner which we done strict testing test(Optical performance, vibration test,thermal cycling,impact resistance, salt spray erosion,thermal aging,humidity resistance and others) and deploy in many place. Their quality are already prooved and appreciated by many customers.

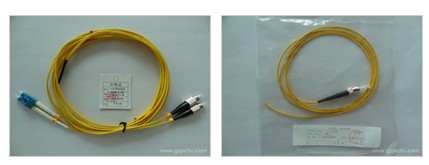

Fiber path cord have following 10 kinds of series which sorted by connector, FC-FC,SC-SC,LC-LC,ST-ST,FC-SC,FC-LC, SC-LC,ST-FC,ST-SC and ST-LC. These series have single mode(yellow in color) and multi mode(Orange in color). It also have sinplex and duplex. The length including 1M,2M,3M,5M,10M,15M and 20M. The whole series comply to IEC standards, GR-326-CORE.

Feature

* Inner covering Dia: 125μm, Dia: 50/62.5μm(Multi Mode), 9μm(Single Mode)

* Impact Resistance: 15Kg

* Fiber outer Dia: 3mm/2mm, Minimum bend radius:10×path cord dia;

* Working Temperature:- 40C--- +75C, Storage Temperature :- 50C--- +85C;

* Low insert loss, excellent repeat plug performance, easy installation and stable.
